TrafficLux Streamline

TrafficLux® Streamline: KST-1008_ES1

TrafficLux® Streamline: KST-1008_ES1

Order-No.: 100890000_E

  • Dust and weather protective housing
  • Base plate of aluminum, top cover of non-combustable plastic (follow EN 45545, HL3, and UL94, NF-F101, 102)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system
  • Size in structure gauge: 139 x 110 X 63mm

TrafficLux® Streamline: KST-1004

TrafficLux® Streamline: KST-1004

Order-No.: 1004 9 0000

  • Dust and weather protective housing
  • Base plate of aluminum, top cover of non-combustable plastic (UL94, NF-F101, 102)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system
  • Size in structure gauge: 179 x 110 x 65mm

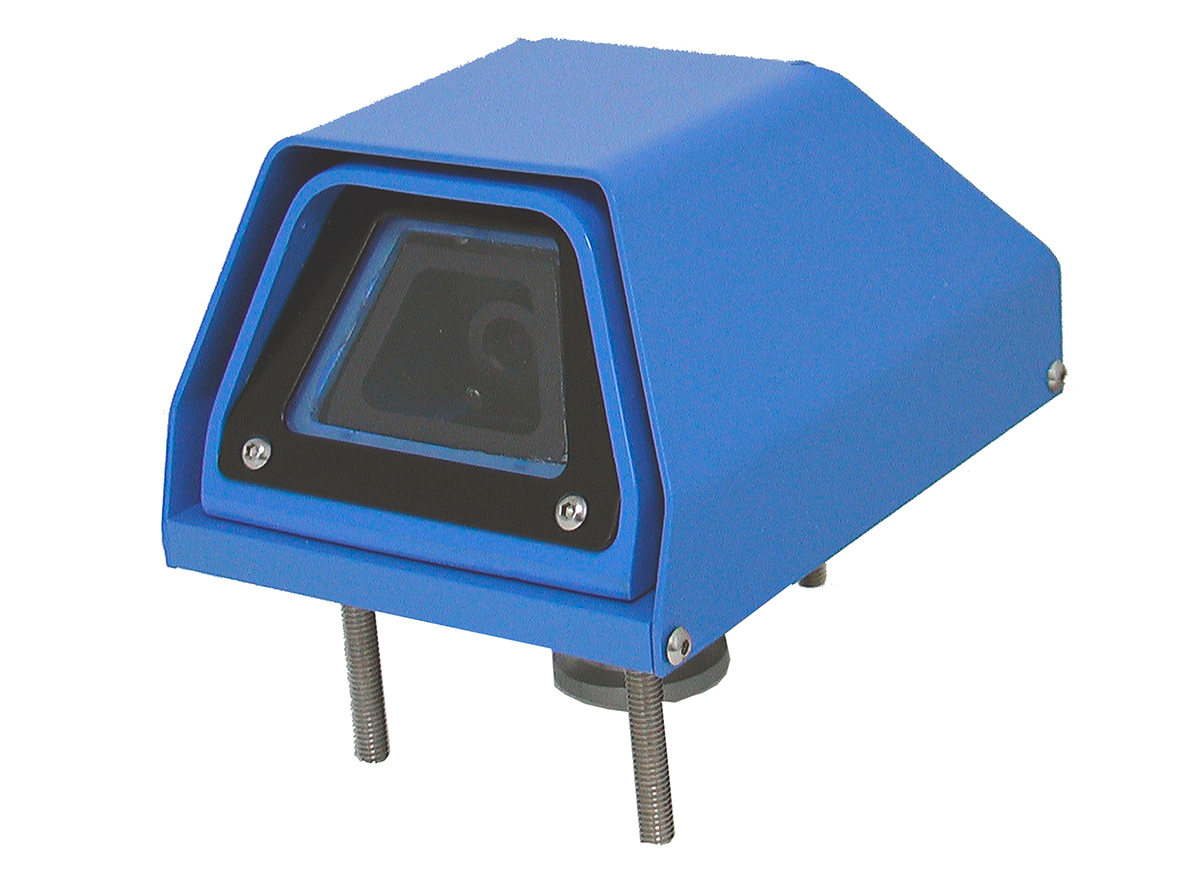

TrafficLux® Streamline: KST-1008

TrafficLux® Streamline: KST-1008

Ordr-No.: 1008 9 0000

  • Dust and weather protective housing
  • Base plate of aluminum, top cover of non-combustable plastic (follow EN 45545, HL3, and UL94, NF-F101, 102), outer shelf of aluminum, stainless steel as an option
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system
  • Size in structure gauge: 130 x 99 x 70mm



TrafficLux® Streamline: KST-1017

TrafficLux® Streamline: KST-1017

Order-No.: 1017 9 0000

  • Rugged double shelf dust and weather protective housing
  • Base plate of aluminum, cover of non-combustable plastic (Follow EN 45545, HL3, UL94, NF-F102, 101), outer shelf of aluminum
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system
  • Size in structure gauge: 216 x 119 x 100mm

TrafficLux® Streamline: KST-1021

TrafficLux® Streamline: KST-1021

Order-No.: 1021 9 0000

  • Rugged double shelf dust and weather protective housing
  • Base plate of aluminum, cover of non-combustable plastic (Follow EN 45545, HL3, UL94, NF-F102, 101), outer shelf of aluminum
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system, camera board ser active cooled
  • Size in structure gauge: 216 x 118 x 101mm

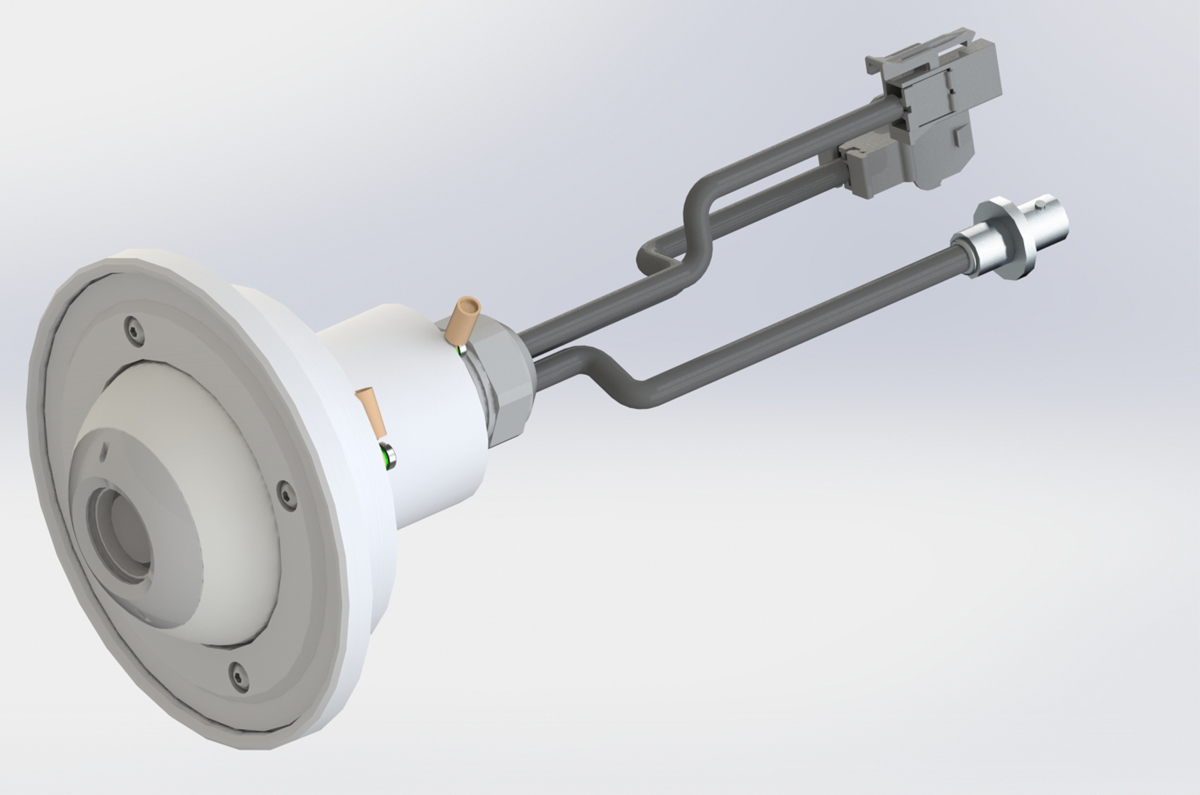

TrafficLux® Streamline: KST-1023_2

TrafficLux® Streamline: KST-1023_2

Order-No.: 1023 9 0000_2

  •  Vandalism resistant camera. Metal housing.
  •  Protection Rate: IP65
  •  Self-controlled heater and front glass heater
  •  Size: D=100mm, length=100mm
  •  Size over wall/shelf: approx. 30mm

TrafficLux® Streamline: KST-1026

TrafficLux® Streamline: KST-1026

Order-No.: 1026 9 0000

  • Dust and weather protective housing
  • Base plate of aluminum, top cover of non-combustable plastic (follow EN 45545, HL3, and UL94, NF-F101, 102)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system
  • Size in structure gauge: 213 x 112 x 88mm

TrafficLux® Streamline: KST-1040

TrafficLux® Streamline: KST-1040

Order-No.: 1040 9 0000

  • Dust and weather protective housing
  • Base plate of aluminum, top cover of non-combustable plastic (follow EN 45545, HL3, and UL94, NF-F101, 102)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system
  • Size in structure gauge: 194 x 134 x 83mm

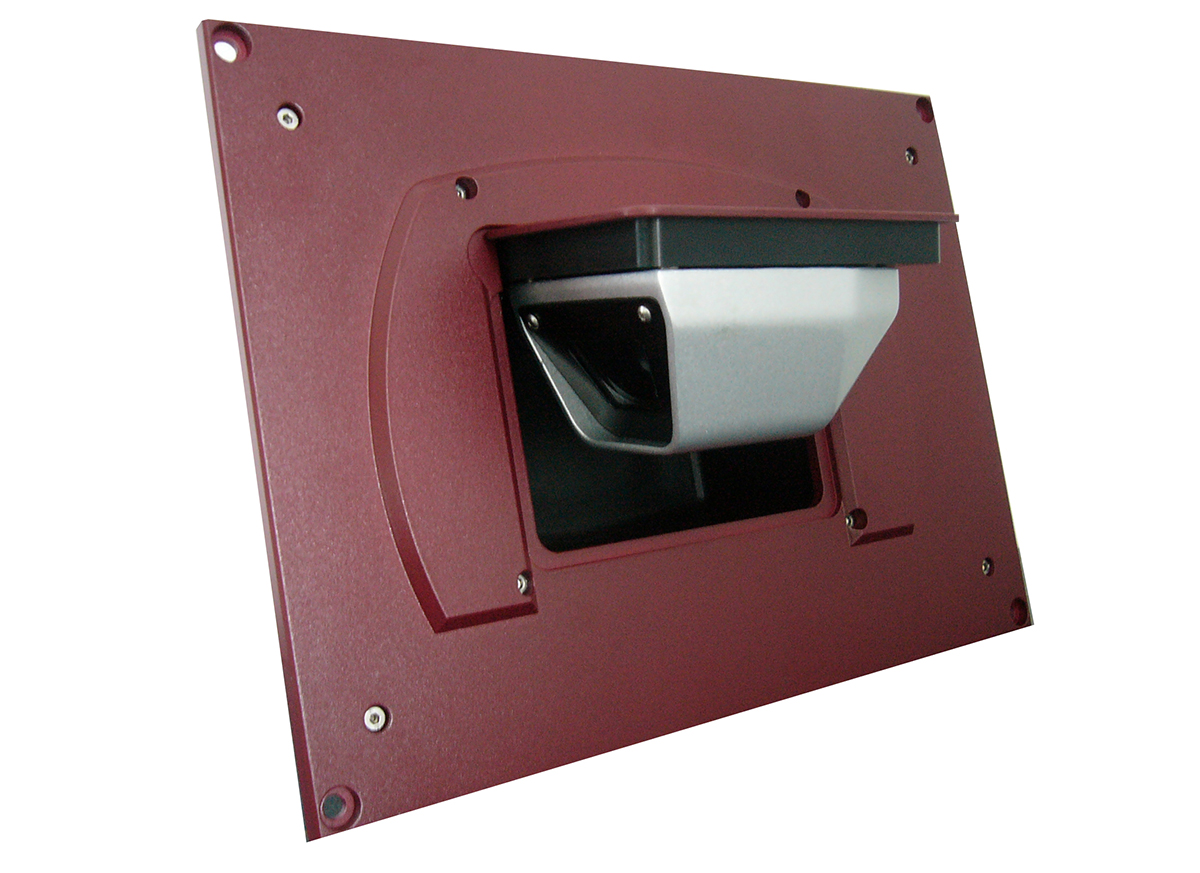

TrafficLux® Streamline: KST-1042

TrafficLux® Streamline: KST-1042

Order-No.: 1042 9 0000

  • Retractable Camera, completely hidden in the vehicle in switch OFF mode.
  • Self controlled heater and front window heater
  • Protection Rate: 65 (higher protection rate on request)
  • Size: 330 x 240 x 100mm (LxBxH)
  • Manual close-able in case of need

The camera under re-design currently. Please ask.

TrafficLux® Standardline: KST-1043

TrafficLux® Standardline: KST-1043

Order-No.: 1043 9 0000

  • Internal camera for forward facing application
  • camera housing adopted to the wind shield
  • integrated front heater as an option
  • Front part designed to minimize reflexes
  • Size: depend on wind shield geometry, requested angle of view and type of camera.



TrafficLux® Streamline: KST-1044

TrafficLux® Streamline: KST-1044

Order-No.: 1044 9 0000

  • Dust and weather protective housing
  • Base plate of aluminum, top cover of non-combustable plastic (follow EN 45545, HL3, and UL94, NF-F101, 102)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system
  • Size in structure gauge: 250 x 136 x 66mm



TrafficLux® Streamline: KST-1048

TrafficLux® Streamline: KST-1048

Order-No.: 1048 9 0000

  • Dust and weather protective housing
  • Base plate of aluminum, top cover of non-combustable plastic (follow EN 45545, HL3, and UL94, NF-F101, 102)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system
  • Size in structure gauge: 255 x 142 x 60mm



TrafficLux® Streamline: KST-1044_4

TrafficLux® Streamline: KST-1044_4

Order-No.: 104490000_4

  • Dust and weather protective housing with self-controlled front window heater and thermal switch
  • Base plate of aluminum, top cover of tough plastic (follow EN 45545, HL3)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated
  • Size in structure gauge: 250 x 136 x 66mm

A second camera allows to watch the near first door of the vehicle.

TrafficLux® Streamline: KST-1049

TrafficLux® Streamline: KST-1049

Order-No.: 1049 9 0000

  • Dust and weather protective housing
  • Base plate of aluminum, top cover of non-combustable plastic (follow EN 45545, HL3, and UL94, NF-F101, 102)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system
  • Size in structure gauge: 163 x 140 x 60mm



TrafficLux® Streamline: KST-1053

TrafficLux® Streamline: KST-1053

Order-No.: 1053 9 0000

Patent-registred, European Patent No. 2692585

  • Dust and weather protective housing for High Speed Trains
  • Base plate of aluminum, top cover of tough plastic (UL94, NF-F101, 102)
  • Front window glasses of high strength glass, alternative sapphire glass
  • Protection Rate: IP 65 (higher protective rate on request)
  • Interior and front window heated by self controlled heater system
  • Size in structure gauge: 458 x 153 x 52mm

TrafficLux® Streamline: KST-1054

TrafficLux® Streamline: KST-1054

Order-No.: 1054 9 0000

  • Dust and weather protective housing for High Speed Trains
  • Base plate of aluminum, top cover of tough plastic (UL94, NF-F101, 102)
  • Front window glasses of high strength glass, alternative sapphire glass
  • Protection Rate: IP 65 (higher protective rate on request)
  • Interior and front window heated by self controlled heater system
  • Size in structure gauge: 458 x 99 x 51mm

TrafficLux® Streamline: KST-1060

TrafficLux® Streamline: KST-1060

Order-No.: 1060 9 0000

  • Dust and weather protective housing for 2 cameras (foreward and rear view)
  • Base plate of aluminum, top cover of non-combustable plastic (UL94, NF-F101, 102)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated by self-controlled heater system
  • Size in structure gauge: 326 x 137 x 70mm

TrafficLux® Streamline: KST-1061

TrafficLux® Streamline: KST-1061

Order-No.: 1061 9 0000

  • Dust and weather protective double shelf housing with self-controlled front window heater and thermal switch
  • base of aluminum, cover of tough plastic (follow EN 45545, HL3), protective cover of aluminum (stainless steel optional)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front glass heated. 2 independent operating self-controlled heater systems, manually operation possible
  • Size in structure gauge: d=152mm, h=65mm

TrafficLux® Streamline: KST-1062

TrafficLux® Streamline: KST-1062

Order-No.: 1062 9 0000

  • Dust and weather protective housing with self-controlled front window heater and thermal switch
  • Base of aluminum, top cover of tough non-combustible plastic (UL94, NF-F101, 102)
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front glass heated
  • Size in structure gauge: Diameter 205mm, Hight: 55mm

TrafficLux® Streamline: KST-1062_1

TrafficLux® Streamline: KST-1062_1

Order-No.: 106290000_1

  • Dust and weather protective housing with self-controlled front window heater and thermal switch
  • Base plate of aluminum, top cover of tough non-combustible plastic (UL94, NF-F101, 102)
  • Protection Rate: IP 65 (highrt protection rate on request)
  • Interior and window glass heated
  • Size in structure gauge: 153 x 158 x 56mm

TrafficLux® Streamline: KST-1063

TrafficLux® Streamline: KST-1063

Order-No.: 1063 9 0000

Patent-registred, European patent no. 2692585

  • Airflow optimized dust and weather protective housing with self-controlled front glass heater and thermal switch
  • Base plate of aliminum, top cover of plastic material following EN 45545, HL3
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated
  • Size in structure gauge: 270 x 166 x 80mm

TrafficLux® Streamline: KST-1064

TrafficLux® Streamline: KST-1064

Order-No.: 1064 9 0000

  • Dust and weather protective housing with self-controlled front window heater and thermal switch.
  • Base plate of aluminum, top cover of plastc material, low infammability or non-combustible
  • Camera adjustable from outside
  • Protection Rate: IP 65 (higher protection rate on request)
  • Interior and front window glass heated
  • Size in structure gauge: 242 x 156 x 87mm

TrafficLux® Streamline: KST-1065

TrafficLux® Streamline: KST-1065

Order-No.: 1065 9 0000

  • Airflow optimized dust and weather protective housing for analogue cameras with self-controlled front window glass heater and thermal switch
  • Best for pantograph observation and forward facing.
  • Protection Rate: IP 65 (higher protection rate  on request)
  • Interior and front window glass heated

TrafficLux® Streamline: KST-1066

TrafficLux® Streamline: KST-1066

Order-No.: 1066 9 0000

  • Airflow optimized dust and weather protective housing for Ethernet IP-cameras with self-controlled front window glass heater and thermal switch
  • Best for pantograph observation and forward facing.
  • Protection Rate: IP 65 (higher protection rate  on request)
  • Interior and front window glass heated

TrafficLux® Streamline: KST-1068

TrafficLux® Streamline: KST-1068

Order-no.: 1068 9 0000

Rear view and Blind Spot camera for tram

  • Dust and weather protective housing
  • Base plate of aluminum, top cover of non-combustable plastic (follow EN 45545, HL3, and UL94, NF-F101, 102)
  • Protection Rate: IP65
  •  Interior and front window glass heated by self-controlled heater system
  •  Size in structure gauge: 288 x 166 x 67mm

TrafficLux® Streamline: KST-1069

TrafficLux® Streamline: KST-1069

Order-no.: 1069 9 0000

Camera for Pantograph monitoring

  • Dust and weather protective housing for camera and illuminator
  • Protection Rate: IP65
  • Interior and front window glass heated by self-controlled heater system
  • LED illuminator, controlled
  • Size in structure gauge: 228 x 232 x 219mm (max.)

TrafficLux® Streamline: KST-1070

TrafficLux® Streamline: KST-1070

Order-No.: 1070 9 0000

Rear view camera with integrated LED-illuminator

  •  Dust and weather protective housing with self-controlled heater
  •  Base plate of aluminum, top cover of plastic (following EN 45545, HL3 and UL94, NF-F101, 102)
  •  Protection Rate: IP65 (higher Protection Rate as an option)
  •  Interior and front window glass heated
  •  LED light warm white, 2700K
  •  Size in structure gauge: 269 x 166 x 60mm
